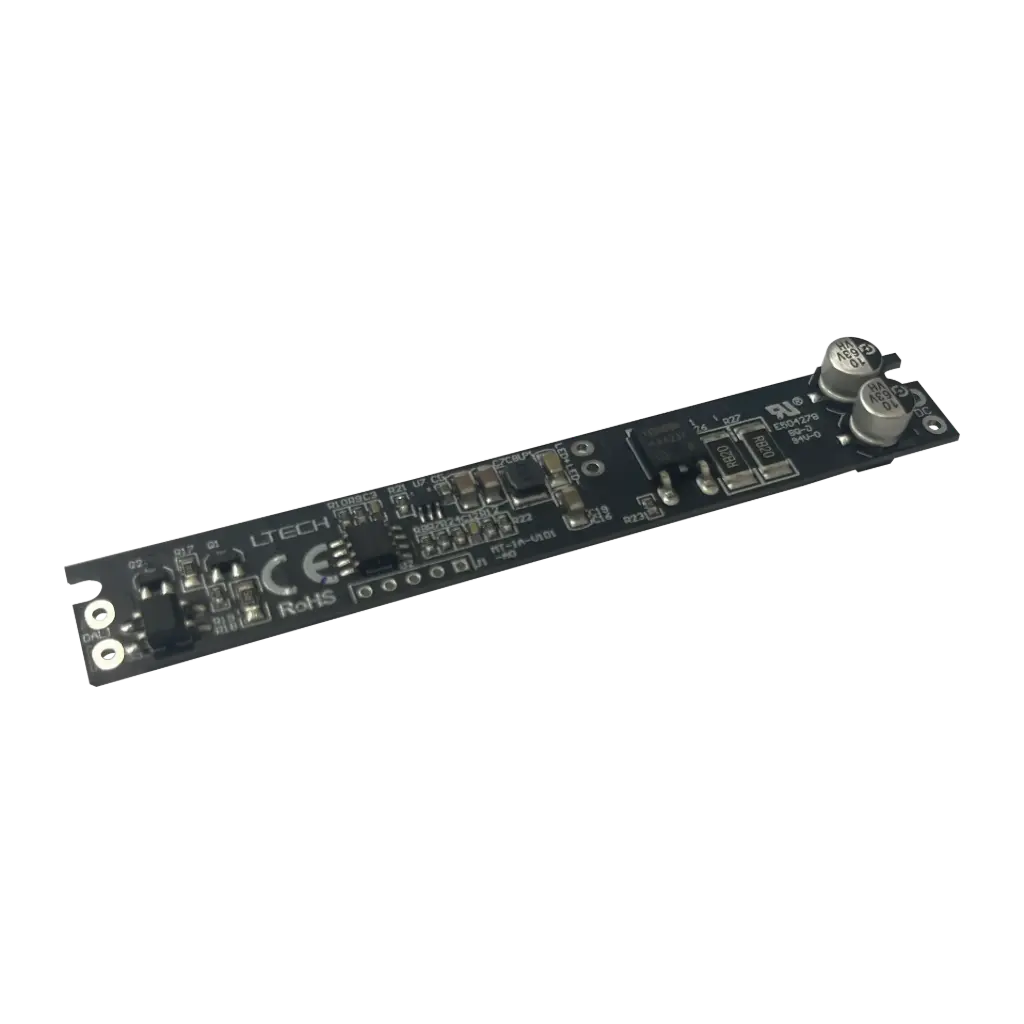

DALI Constant Voltage Driver
Designed for magnetic and linear lamps. Features DC-to-DC constant voltage output with DALI 2.0 protocol support. Polarity-free design and ultra-compact size, compatible with STUCCHI standard housings. Magnetic installation ensures quiet operation without high-frequency noise. Provides smooth, flicker-free dimming. Built-in protections against short circuit, overload, and reverse connection.
• Input Voltage: 12-48V DC ±5% (No polarity)
• Input Current: ≤1.1A
• Output Voltage: 12-48V DC
• Output Current: Max.1A
• Output Power: 12W-48W
• Channel: 1
• Dimming Range: 0-100%, down to 0.1%
• Dimming Interface: DALI-2
• Working Temperature: ta: -30~55°C tc: 87°C
• Dimensions: L97 × W14 × H9 (mm)
• Weight (G.W.): 6.6g±2g
