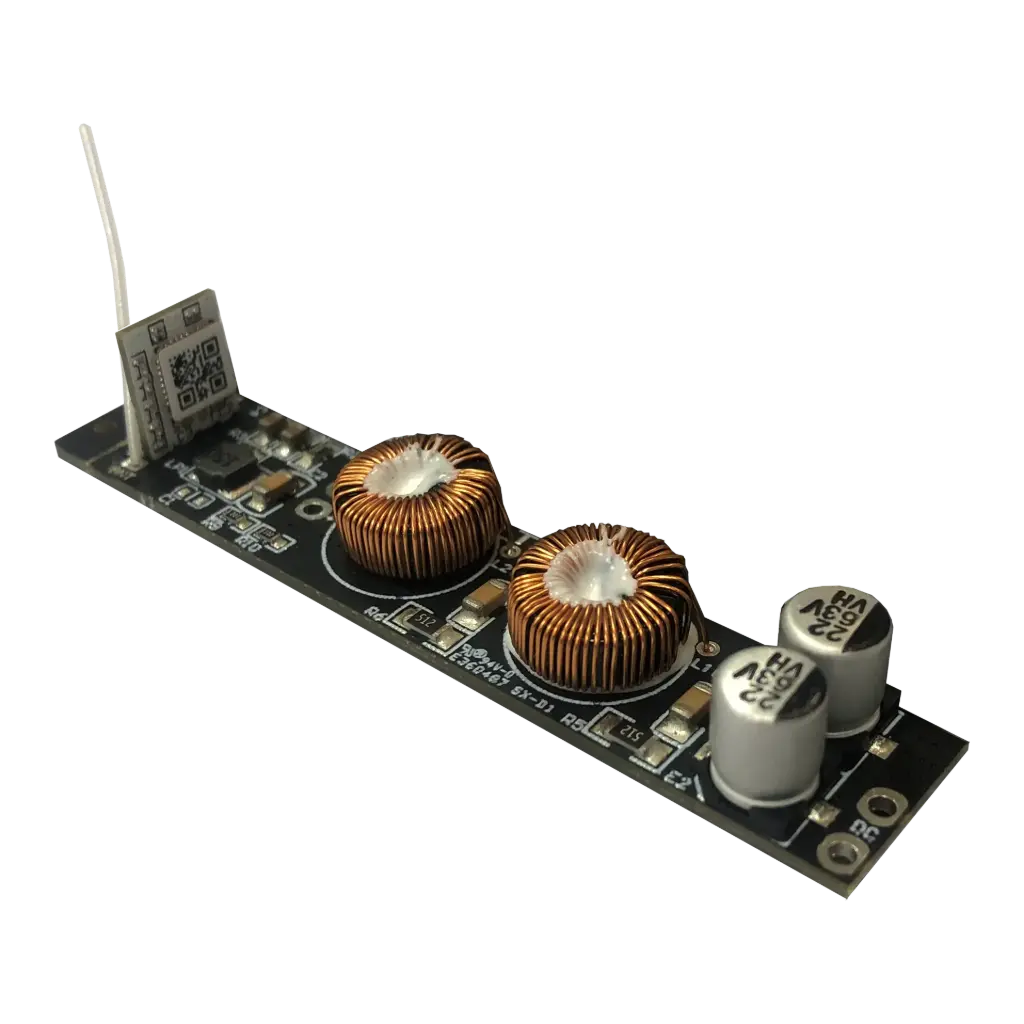

LTECH LTSYS Track Driver CC TUYA IOT 2CH 100-300mA 48V
TY-300-D2Z1
Zigbee Tunable White LED Driver (Constant Current)
This compact DC-to-DC constant current driver supports control via iOS and Android devices. Its polarity-free input and ultra-small size make it compatible with STUCCHI standard housings. The magnetic installation operates quietly without high-frequency noise, while smooth, flicker-free dimming ensures visual comfort. Built-ins short-circuit, overload, and reverse protection enhance reliability, and it comes with a 5-year warranty.
- Input Voltage: 48Vdc±5% (No polarity)
- Input Current: <0.28A
- Output Voltage: 10~42Vdc
- Output Current: 100~300mA
- Output Power: 1W~12.6W
- Dimming Interface: Zigbee
- Working Temperature: ta: -30~55°C tc: 87°C
Specifications
Control
Zigbee
Channels
2
Input Voltage
48 V
Input Voltage Domain
DC
Output Current
100-300mA
Output Voltage
10-42 V
Output Power Range
12.6 W
Dimming Range
0-100% down to 0.1%
Weight
8g
Dimensions
L65xW13.5xH13(mm)
Working Temperature
-30°C-55°C
Internal Reference
2900136
HS Code
85044095
