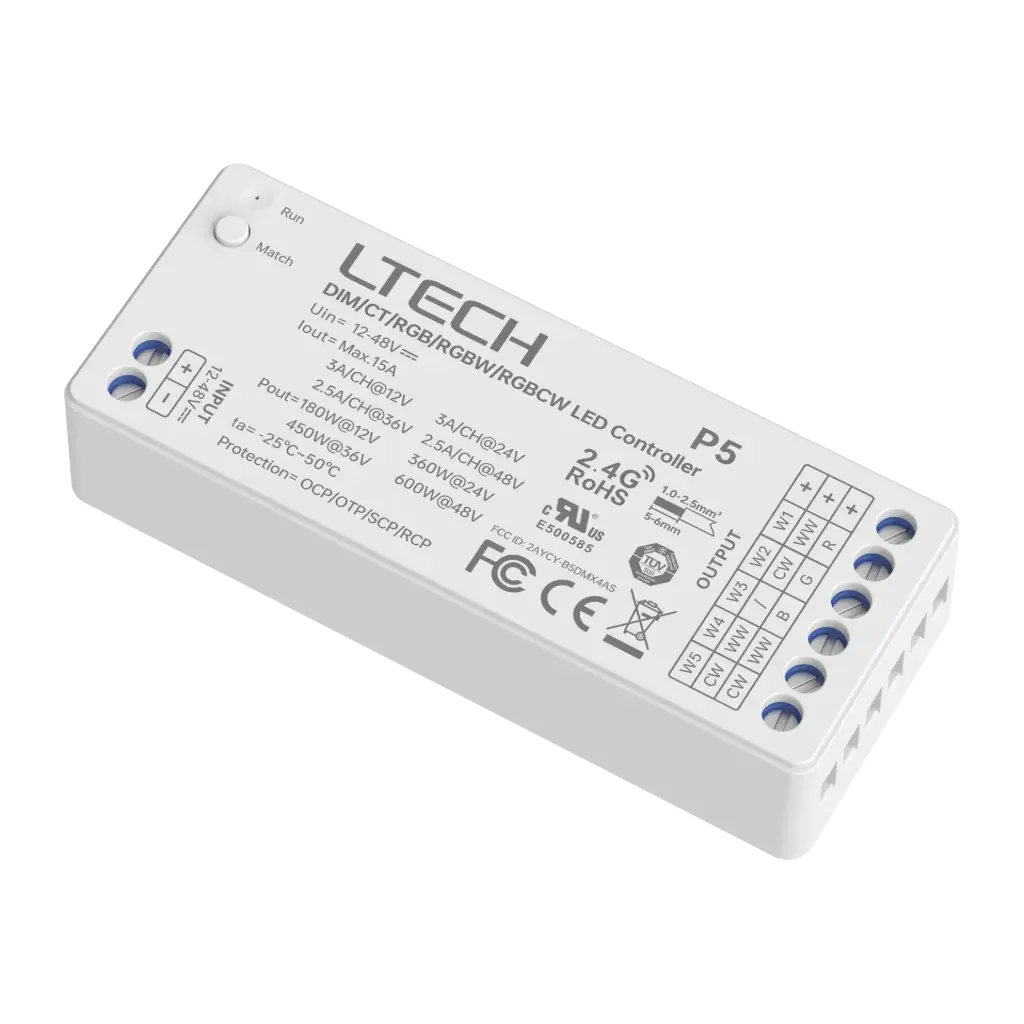

Compact and lightweight, the controller features a V0 flame-retardant PC housing from SAMSUNG/COVESTRO. Soft-on and fade-in dimming enhances visual comfort. It supports 2.4GHz wireless control, eliminating signal wiring, with 1–5 channel constant voltage output for DIM, CT, RGB, RGBW, and RGBCW lights. Compatible with MINI series RF remotes, P3, P4, and P5 offer 9 built-in dynamic modes. One controller can pair with up to 10 remotes, with synced dynamic effects across controllers in the same group or zone.
• Input Signal: RF2.4GHz
• Input Voltage: 12-48V
• No. of Channel: 5CH
• Reset Switch: Yes
• Load Current: Max. 15A
• Load Power: 180W@12V 360W@24V
450W@36V 600W@48V
• Working Temperature: -25°C~50°C
• Dimensions: L91 × W37 × H21 (mm)
• Weight: 46g
