LTECH Mini RF remote + receiver CV 12A CT

M2A+P2

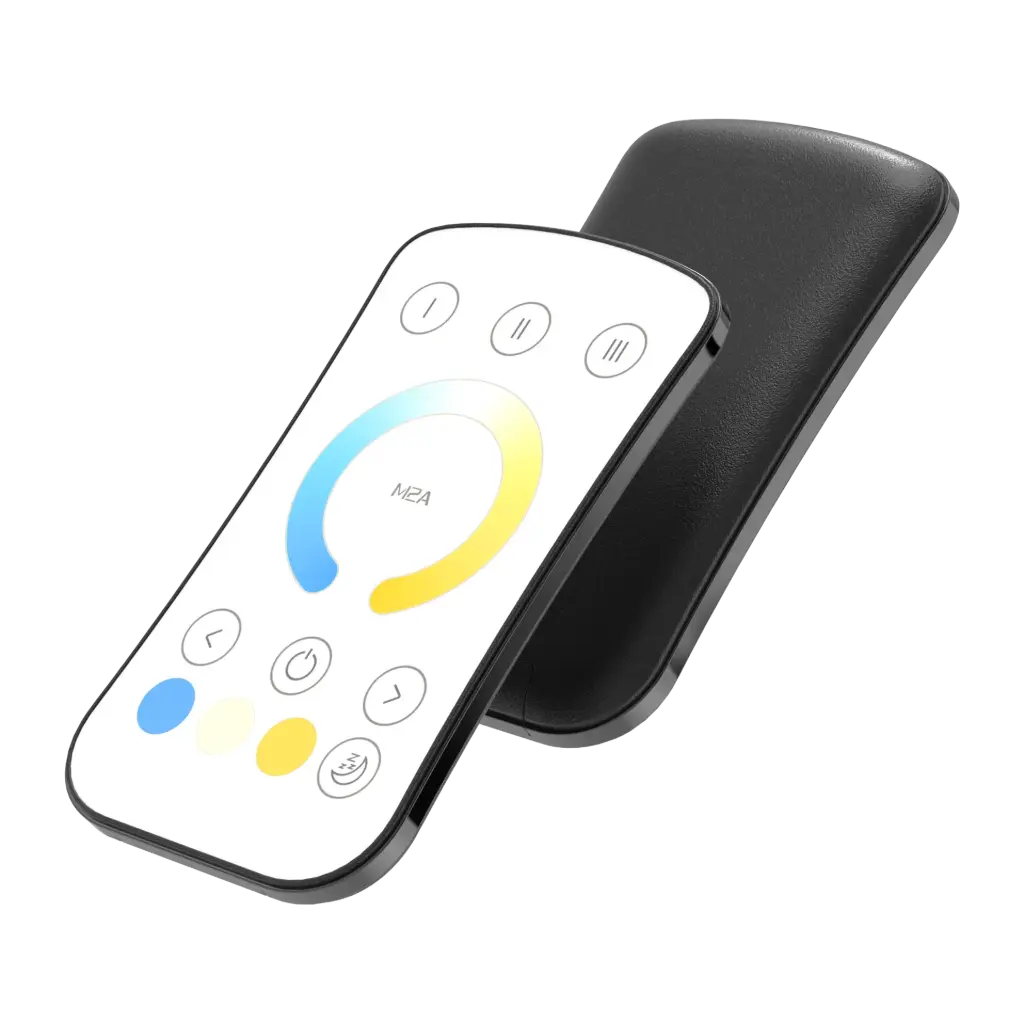

Mini LED Remote (Single-Zone) Model: M2A

Dimming mode: Color temperature
Wireless Protocol: RF 2.4GHz
Working Voltage: 3Vdc (Button battery CR2032x1)
Standby Current: <2uA Distance of Remote: 30M (Under no interference)
Working Temperature: -30°C~55°C
Dimensions:
- Remote: L104 x W58 x H9 (mm)
- Remote + Holder: L108 x W63 x H14 (mm)
Weight: 40g

LED Controller Model: P2

Input signal: RF2.4GHz
Input voltage: 12-48Vdc
Output voltage: 12-48Vdc
Load current: Max.12A
Working Temperature: -25°C ~50°C
Dimensions: L91 x W37 x H21 (mm)
Weight: 46g

€ 32.89

Add to cart

Channels: 2

Input Voltage: DC (12-48 V)

Input Voltage Domain: DC

Working Temperature: -25°C to 50°C

Output Voltage: 12-48 V

Output Power: 384 W

Curent load max: 12A

Weight (g): 46g

Dimensions (LxWxH) (mm): L91xW37xH21(mm)

Package Size: L91xW37xH21(mm)

Documents

M2A+P2 User Manual.pdf

Specifications

Channels 2

Input Voltage DC (12-48 V)

Input Voltage Domain DC

Working Temperature -25°C to 50°C

Output Voltage 12-48 V

Output Power 384 W

Curent load max 12A

Weight (g) 46g

Dimensions (LxWxH) (mm) L91xW37xH21(mm)

Package Size L91xW37xH21(mm)

Internal Reference 2266220

Barcode 6971379113452

HS Code 85044095

Downloads

M2A+P2 User Manual Click to view Download
