SP-GW-12S
Super Panel 12S is a 12.3-inch smart home control panel with a 1920x720 HD touchscreen. It supports dual-band WiFi, Bluetooth Mesh, and Bluetooth 5.1 for smart speaker connection. With two relay channels (max 1200W) and IR control, it manages both smart and traditional devices.
Built with a six-microphone array and light/proximity sensor, it adjusts brightness and wakes automatically. The panel supports touch, button, and app control, enables one-touch scenes, and offers stable local operation even without a network.
• Wireless Network: Bluetooth 5.0 SIG Mesh, BLE 5.1, WiFi 6 2.4G+5G
• Wired Network: Ethernet
• Power Supply: 100-240V~, 50/60Hz, USB Type-C cable powered, 12V=1.5A
• Display: 12.3-inch FHD Screen, 1920 x 720 resolution
• Touchpad: Capacitive multi-touch screen
• Materials: PC + V0 fireproof grade
• Channel of Load: 2 Channels
• Inrush Current in Loads: Max. 65A@2ms

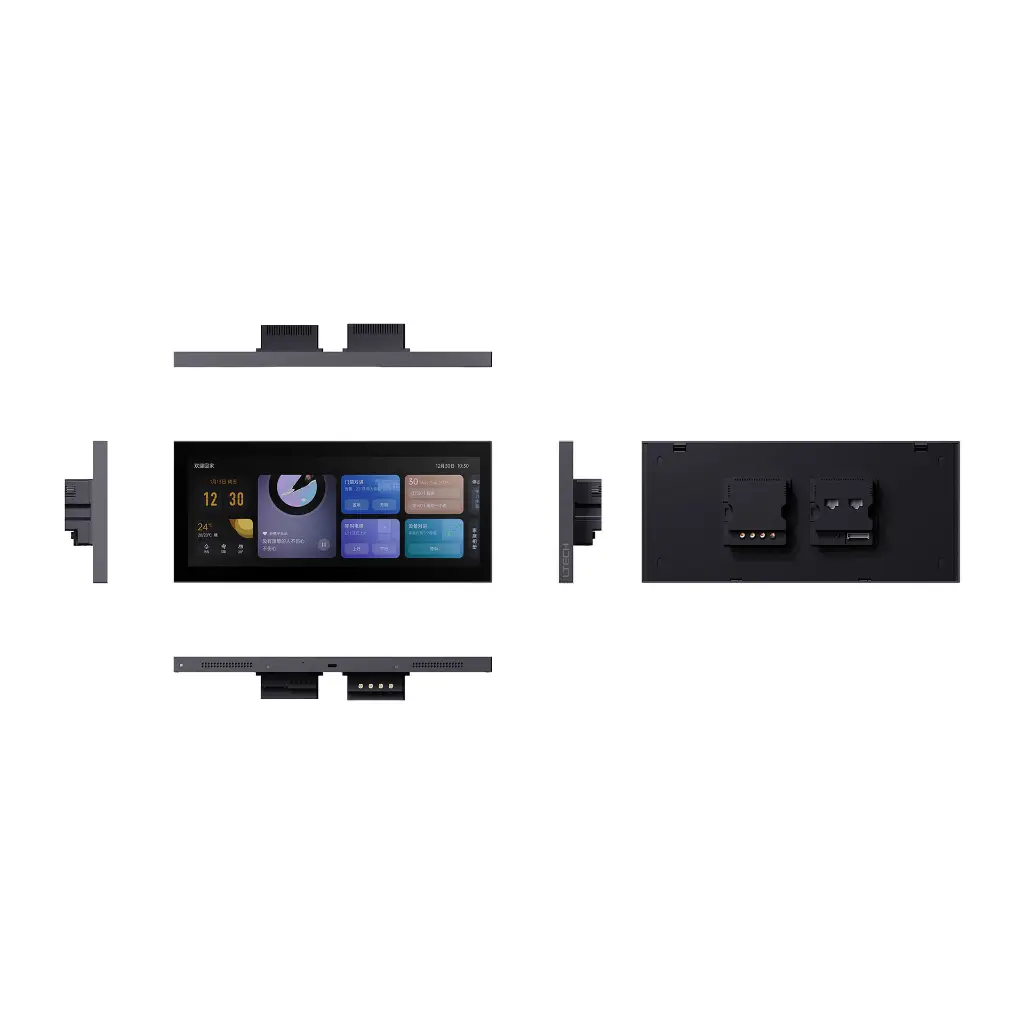

• Dimensions: L317 x W141 x H42.5 (mm)
• Junction box: 2-gang 86 type
• Net Weight: 1100g
