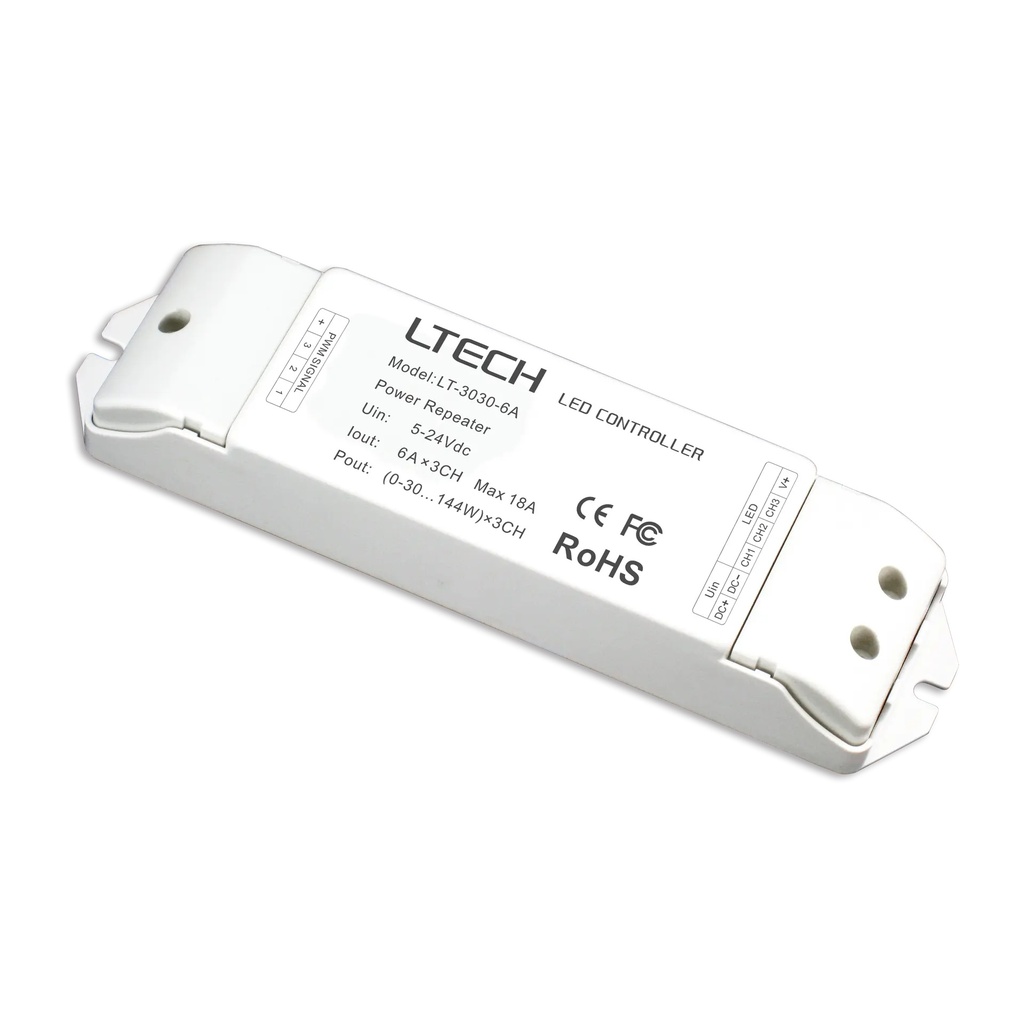

LTECH Power repeater CV 3x6A - LT-3030-6A

LTECH Power repeater CV 3x6A

LT-3030-6A

LED Power Repeater expands the output of compatible controllers. Accepts PWM control and doubles controllable LED load per unit. Unlimited repeaters can be connected. Signal input/output includes 5kV photoelectric isolation for protection.


€ 59.72 € 59.72

  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Working Temperature
  • Output Power
  • Current load/ ch
  • Curent load max
  • Weight (g)
  • Dimensions (LxWxH) (mm)
  • Package Size
Add to cart
Channels: 3
Input Voltage: DC (5-24 V)
Input Voltage Domain: DC
Working Temperature: -30°C to 55°C
Output Power: 144 W
Current load/ ch: 6A
Curent load max: 18A
Weight (g): 135g
Dimensions (LxWxH) (mm): L175xW44xH30(mm)
Package Size: L178xW48xH33(mm)
Documents
LT-3030-6A User Manual.pdf
Specifications
Channels 3
Input Voltage DC (5-24 V)
Input Voltage Domain DC
Working Temperature -30°C to 55°C
Output Power 144 W
Current load/ ch 6A
Curent load max 18A
Weight (g) 135g
Dimensions (LxWxH) (mm) L175xW44xH30(mm)
Package Size L178xW48xH33(mm)
Internal Reference 2311100
Barcode 6971379115906
HS Code 85044095
Downloads
LT-3030-6A User Manual Click to view Download

Internal Reference: 2311100
Barcode: 6971379115906
HS Code: 85044095
