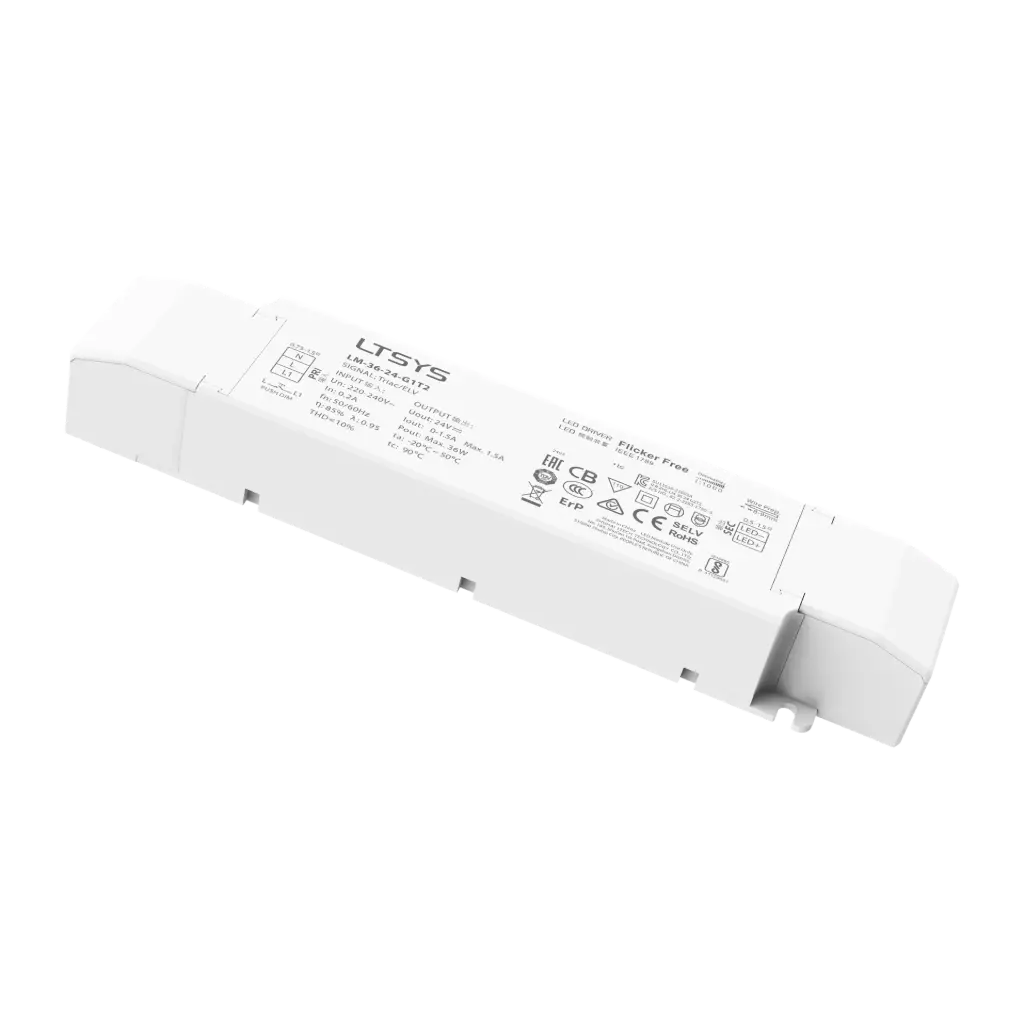

LTECH LTSYS Driver CV TRIAC 1CH 24V 36W
LM-36-24-G1T2
LED Intelligent Driver (Constant Voltage)
Small, lightweight V0 flame-resistant polycarbonate protective housing from Samsung/Covestro with removable end cap for adjustable length. Soft-on and fade-in dimming enhances visual comfort. Flicker-free with high-frequency exemption. Supports Leading edge (Triac), Trailing edge (ELV) phase-cut, and Push DIM. Secure signal isolation and intelligent thermal management with overload, over-temp, short-circuit, and overvoltage protection. Suitable for indoor light applications for I/II/III. 50,000-hour lifetime.
€ 33.98
excl. VAT
€ 33.98
Partner?
Log in
and see your partner price and volume discounts right away.
Specifications
Internal Reference
2843200
Barcode
6971379110161
HS Code
85044095
General
Control
TRIAC
Channels
1
Input Voltage
AC (220-240 V)
Input Voltage Domain
AC
Output Voltage
24 V
Output Power
36 W
Dimming Range
0-100% down to 0.1%
Maximum Current
1.5 A
Maximum Output Current
1.5 A
Operating
Certificates
CCC
·
BIS
·
TUV
·
CE
·
KC
·
RCM
·
CB
·
EAC
·
UKCA
·
RoHS
·
ERP
Warranty
5 Years
