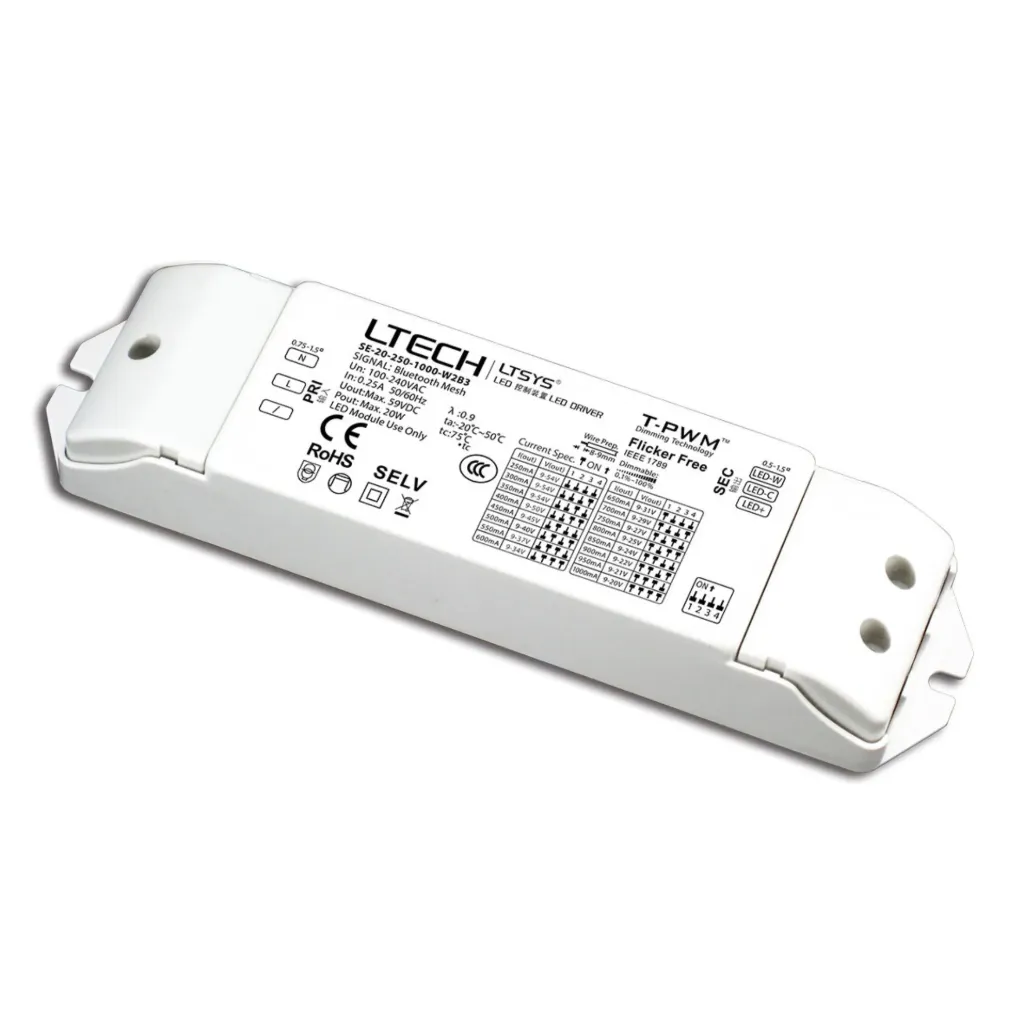

LTECH LTSYS Driver CC TUYA IOT 2CH 250-1000mA 20W - SE-20-250-1000-W2B3

LTECH LTSYS Driver CC TUYA IOT 2CH 250-1000mA 20W

SE-20-250-1000-W2B3

Intelligente tunable white LED driver (constante stroom)
Compacte, lichtgewicht LED driver met Samsung/Covestro V0 vlamvertragende behuizing. Ondersteunt Bluetooth Mesh en Tuya-besturing op iOS/Android. T-PWM™ dimmen zorgt voor flikkervrij dimmen van 0-100%, met behoud van helderheid tijdens kleurtemperatuuraanpassingen. Soft-on en fade-in verbeteren het visuele comfort. Voorzien van intelligent thermisch beheer, volledige beveiliging en tot 50,000 uur levensduur. 5 jaar garantie (Rubycon-condensator).

  • Ingangsspanning: 120-300Vdc /100-240Vac
  • Uitgangsspanning: 9-54Vdc Max. 59Vdc
  • Uitgangsstroom: 250-1000mA
  • Uitgangsvermogen: Max. 20W
  • Diminterface: DMX512/RDM
  • Werktemperatuur: ta: -20~50°C tc: 75°C
  • Afmetingen: L167 x W41 x H32 (mm)
  • Gewicht (N.W): 160g
€ 15,30 € 43,72

  • Control
  • Channels
  • Input Voltage
  • Input Voltage
  • Input Voltage Domain
  • Input Voltage Domain
  • Working Temperature
  • Output Current
  • Output Voltage
  • Output Power
  • Dimming Range
  • Weight (g)
  • Dimensions (LxWxH) (mm)
Aan winkelmandje toevoegen
Control: BLE
Channels: 2
Input Voltage: DC (120-300 V) , AC (100-240 V)
Input Voltage Domain: AC , DC
Working Temperature: -25°C to 50°C
Output Current: 250-1000mA
Output Voltage: 9-54 V
Output Power: 20 W
Dimming Range: 0-100% down to 0.1%
Weight (g): 160g
Dimensions (LxWxH) (mm): L167xW41xH32(mm)
Documenten
SE-20-250-1000-W2B3 User Manual.pdf
Specifications
Control BLE
Channels 2
Input Voltage DC (120-300 V) · AC (100-240 V)
Input Voltage Domain AC · DC
Working Temperature -25°C to 50°C
Output Current 250-1000mA
Output Voltage 9-54 V
Output Power 20 W
Dimming Range 0-100% down to 0.1%
Weight (g) 160g
Dimensions (LxWxH) (mm) L167xW41xH32(mm)
Internal Reference 2860200
Barcode 6971379111748
HS Code 85044095
Downloads
SE-20-250-1000-W2B3 User Manual Click to view Download
