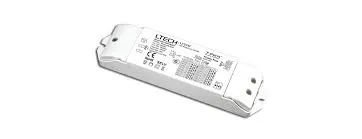

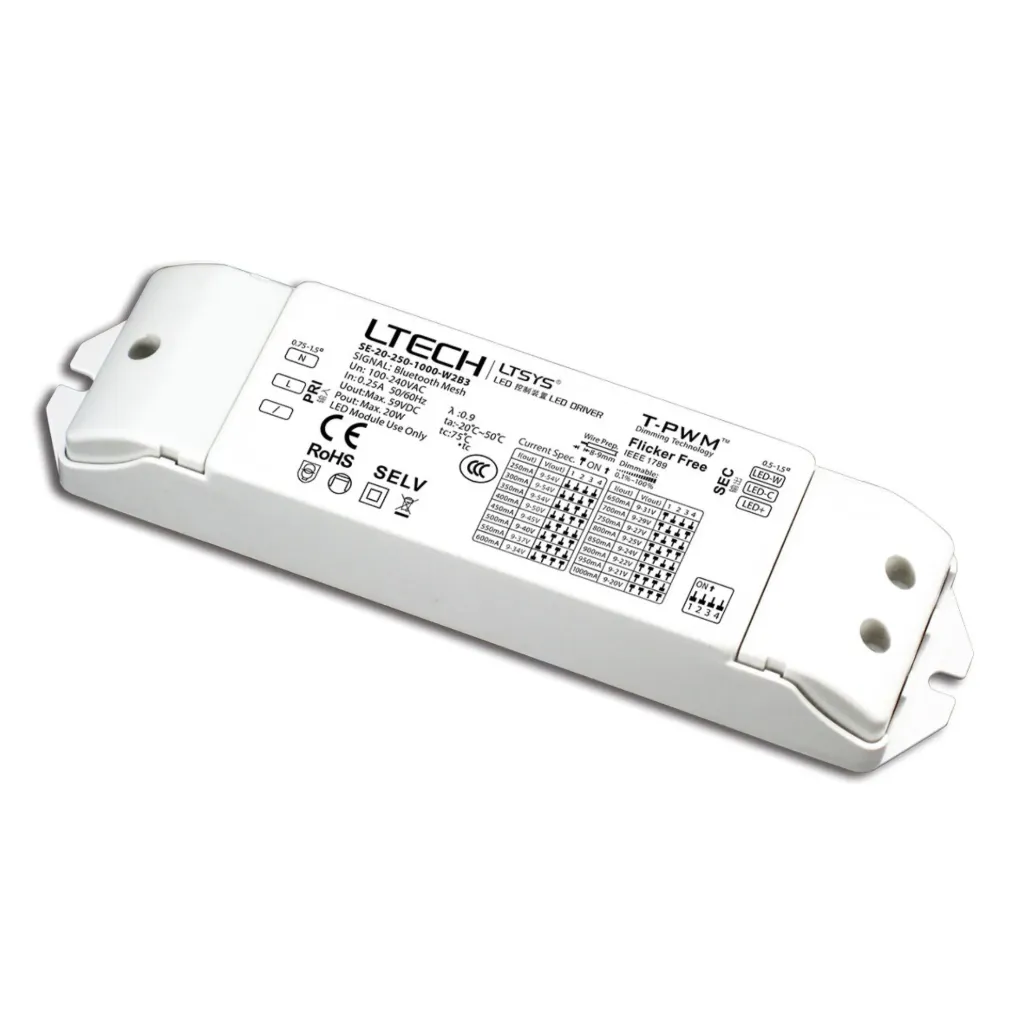

LTECH LTSYS Driver CC TUYA IOT 2CH 250-1000mA 20W - SE-20-250-1000-W2B3

LTECH LTSYS Driver CC TUYA IOT 2CH 250-1000mA 20W

SE-20-250-1000-W2B3

Intelligent Tunable White LED Driver (Constant Current)
Compact, lightweight LED driver with Samsung/Covestro V0 flame-retardant housing. Supports Bluetooth Mesh and Tuya control on iOS/Android. T-PWM™ dimming ensures flicker-free 0-100% dimming, maintaining brightness during color temperature adjustments. Soft-on and fade-in enhance visual comfort. Features intelligent thermal management, full protection, and up to 50,000-hour lifetime. 5-year warranty (Rubycon capacitor).

  • Input Voltage: 120-300Vdc /100-240Vac
  • Output Voltage: 9-54Vdc Max. 59Vdc
  • Output Current: 250-1000mA
  • Output Power: Max. 20W
  • Dimming Interface: DMX512/RDM
  • Working Temperature: ta: -20~50°C tc: 75°C
  • Dimensions: L167 x W41 x H32 (mm)
  • Weight (N.W): 160g
€ 15.30 € 43.72

  • Control
  • Channels
  • Input Voltage
  • Input Voltage
  • Input Voltage Domain
  • Input Voltage Domain
  • Output Current
  • Output Voltage
  • Output Power Range
  • Dimming Range
  • Weight
  • Dimensions
  • Working Temperature
Add to cart
Control: BLE
Channels: 2
Input Voltage: 120-300 V , 100-240 V
Input Voltage Domain: AC , DC
Output Current: 250-1000mA
Output Voltage: 9-54 V
Output Power Range: 20 W
Dimming Range: 0-100% down to 0.1%
Weight: 160g
Dimensions: L167xW41xH32(mm)
Working Temperature: -25°C-50°C
Documents
SE-20-250-1000-W2B3 User Manual.pdf
Specifications
Control BLE
Channels 2
Input Voltage 120-300 V · 100-240 V
Input Voltage Domain AC · DC
Output Current 250-1000mA
Output Voltage 9-54 V
Output Power Range 20 W
Dimming Range 0-100% down to 0.1%
Weight 160g
Dimensions L167xW41xH32(mm)
Working Temperature -25°C-50°C
Internal Reference 2860200
Barcode 6971379111748
HS Code 85044095
Downloads
SE-20-250-1000-W2B3 User Manual Click to view Download

Internal Reference: 2860200
Barcode: 6971379111748
HS Code: 85044095
