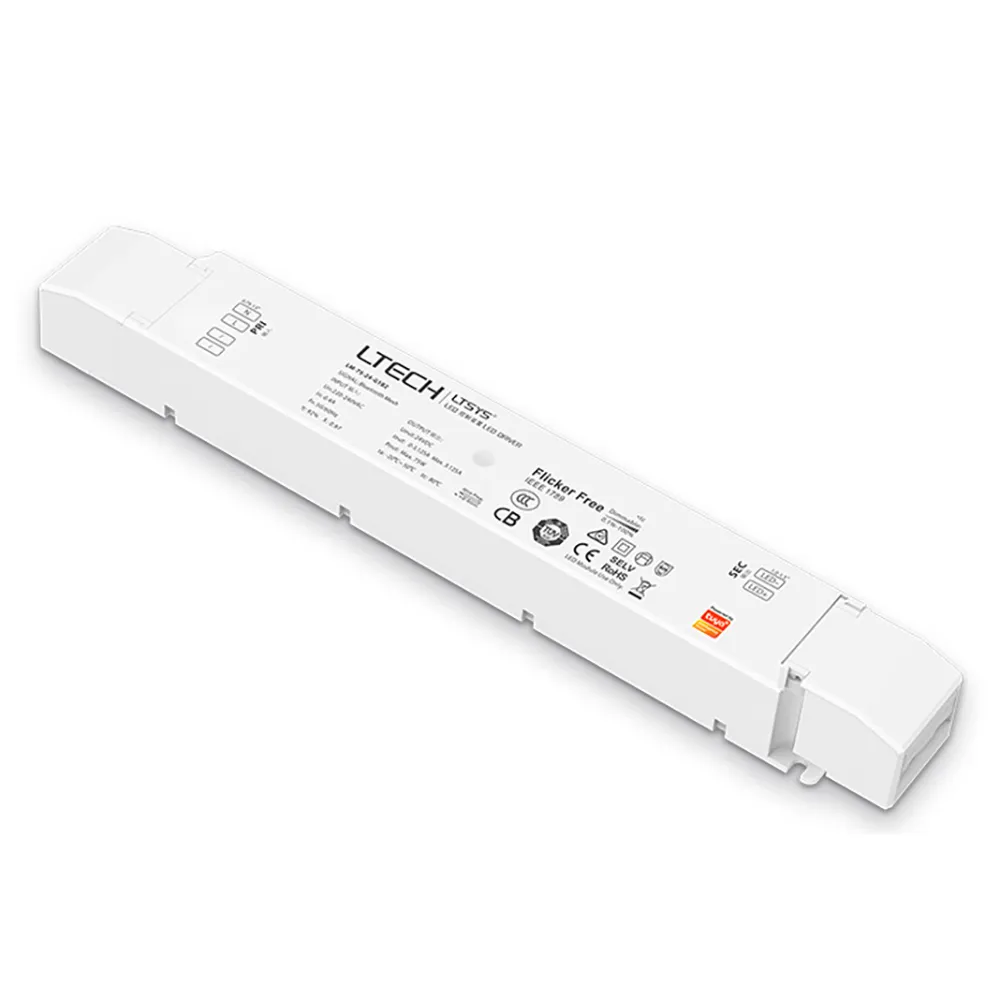

LTECH CV LED Driver Bluetooth 75W 24V

LM-75-24-G1B2-TY

Intelligent LED Driver (Constant Voltage)
Features a compact, lightweight V0 flame-resistant polycarbonate housing from Samsung and Covestro. Supports Bluetooth Mesh and Tuya protocols for stable, reliable networking. Includes soft-on and fade-in dimming for improved visual comfort, with memory to restore the last brightness setting at power-on. Offers flicker-free dimming from 0.1% to 100% with frequency exemption. Advanced thermal management extends product life, with built-in protection against overheating, overvoltage, overload, and short circuits, plus automatic recovery. Suitable for indoor lighting applications in zones I, II, and III, with a lifespan of up to 50,000 hours and a 5-year warranty (Rubycon capacitor).

  • Output Voltage: 24Vdc
  • Output Current: Max. 3.125A
  • Output Power: Max. 75W
  • Input Voltage: 220-240Vac
  • Input Current: Max. 04A/230Vac
  • Working Temperature: ta: -20~50°C tc: 80°C
  • Dimensions: L292 x W43 x H30 (mm)
  • Gross Weight (G.W.): 300g
€ 34.00 € 97.14

  • Control
  • Input Voltage
  • Input Voltage Domain
  • Working Temperature
  • Output Voltage
  • Output Power
  • Dimming Range
  • Weight (g)
  • Dimensions (LxWxH) (mm)
  • Package Size
  • Maximum Current
  • Maximum Output Current
Control: BLE
Input Voltage: AC (220-240 V)
Input Voltage Domain: AC
Working Temperature: -20°C to 50°C
Output Voltage: 24 V
Output Power: 75 W
Dimming Range: 0-100% down to 0.1%
Weight (g): 300g
Dimensions (LxWxH) (mm): L293xW43xH30(mm)
Package Size: L296xW44xH33(mm)
Maximum Current: 3.125 A
Maximum Output Current: 3.125 A
Specifications
Control BLE
Input Voltage AC (220-240 V)
Input Voltage Domain AC
Working Temperature -20°C to 50°C
Output Voltage 24 V
Output Power 75 W
Dimming Range 0-100% down to 0.1%
Weight (g) 300g
Dimensions (LxWxH) (mm) L293xW43xH30(mm)
Package Size L296xW44xH33(mm)
Maximum Current 3.125 A
Maximum Output Current 3.125 A
Internal Reference 2861100
Barcode 8720387935031
HS Code 85044095
Downloads
LM-75-24-G1B2-TY User Manual Click to view Download

Internal Reference: 2861100
Barcode: 8720387935031
HS Code: 85044095
