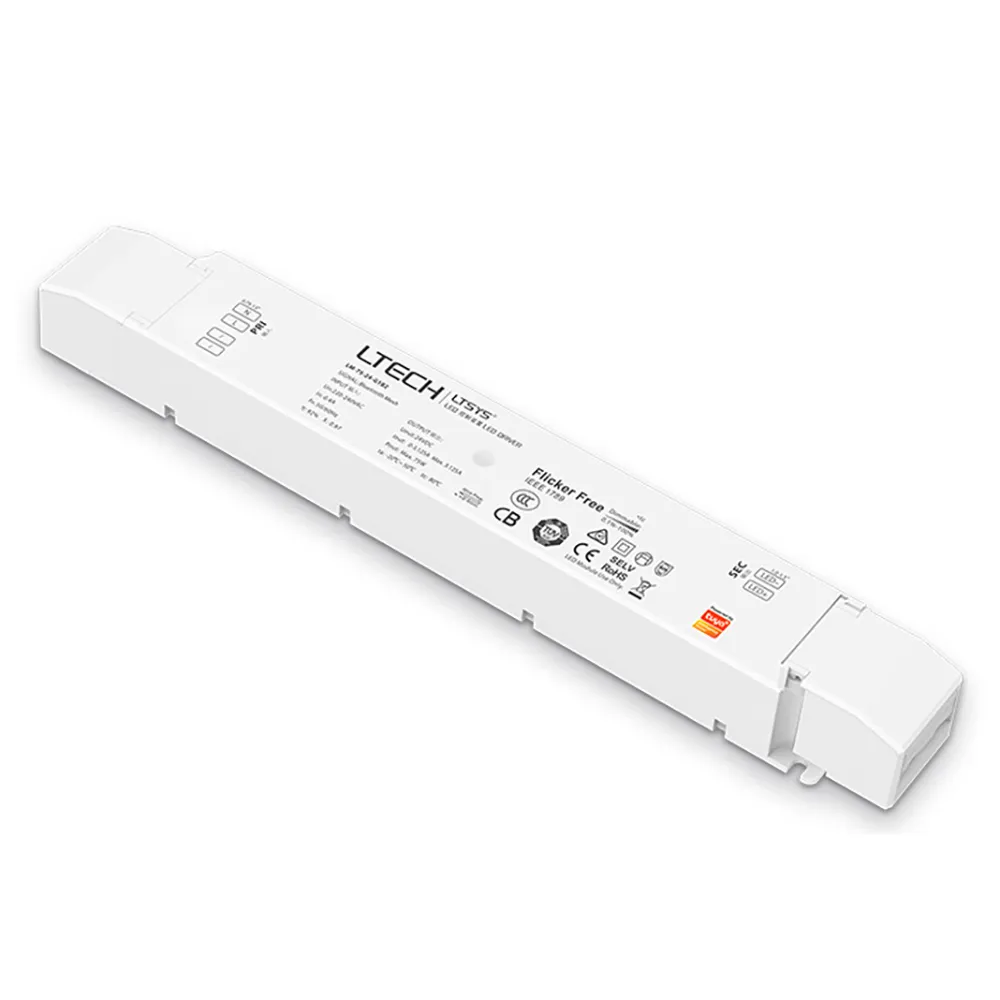

LTECH CV LED Driver Bluetooth 100W 24V - LM-100-24-G2B3


Intelligent Tunable White LED Driver (Constant Voltage)
Compact and lightweight flame-resistant polycarbonate housing made from Samsung and Covestro V0 materials. Supports Bluetooth Mesh and Tuya protocols for stable, reliable networking. Features soft-on and fade-in dimming for improved visual comfort, with memory to restore the last brightness level when powered on. Flicker-free dimming from 0.1% to 100% with frequency exemption. Advanced thermal management extends product lifespan, supported by full protection against overheat, overvoltage, overload, and short circuits with automatic recovery. Designed for indoor lighting applications in zones I, II, and III, with a lifespan of up to 50,000 hours and a 5-year warranty using Rubycon capacitors.

  • Output Voltage: 24Vdc
  • Output Current: Max. 4.17A
  • Output Power: Max. 100W
  • Input Voltage: 220-240Vac
  • Input Current: Max. 0.5A/230Vac
  • Working Temperature: ta: -20 ~ 50°C tc: 80°C
  • Dimensions: L292 x W43 x H33 (mm)
  • Gross Weight (G.W.): 300g
€ 36.05 € 103.00


Internal Reference: 2861200
Barcode: 8720387935048
HS Code: 85043180
