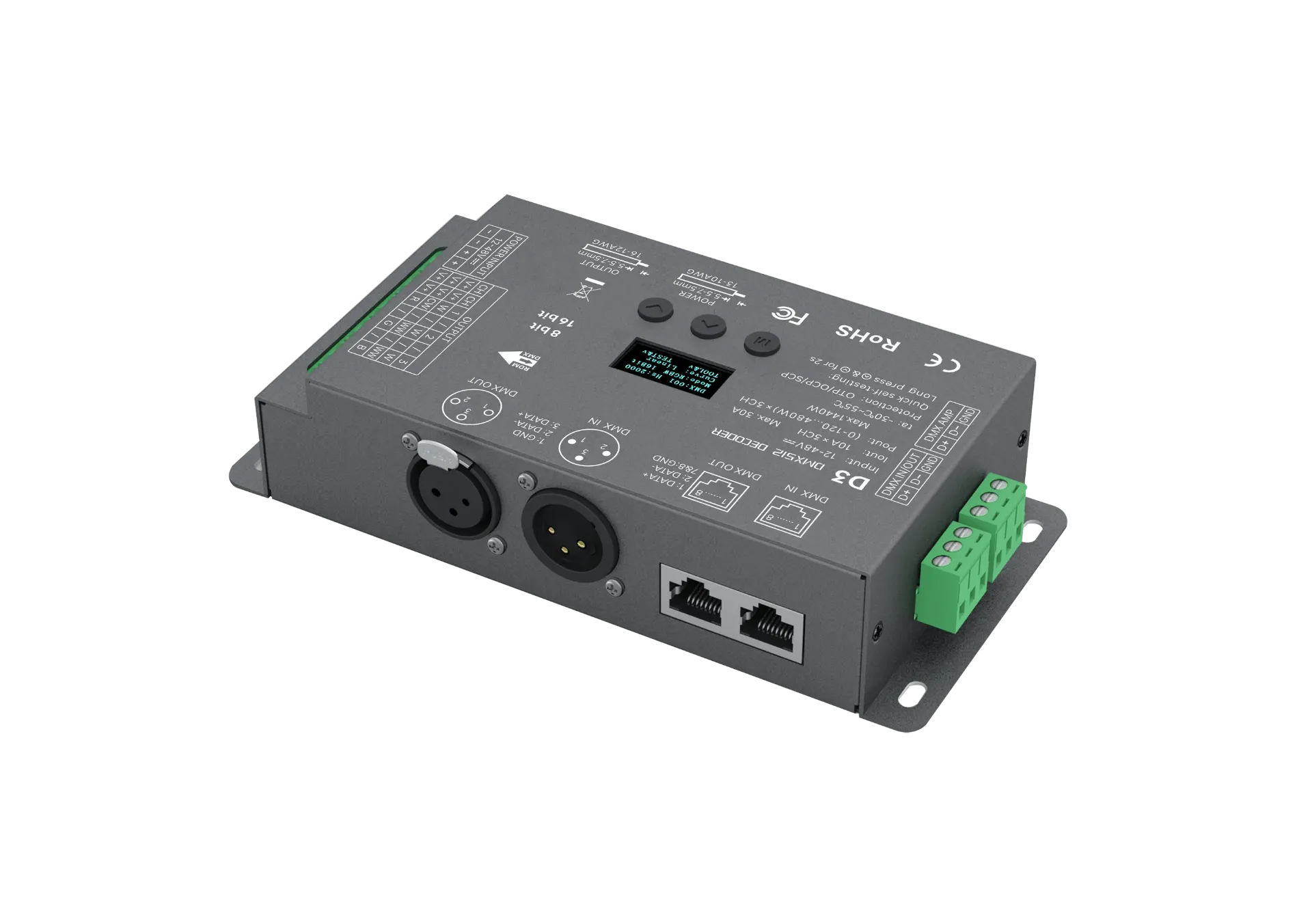

LTECH LTSYS Decoder CV DMX 3CH D3

€ 52.44 € 52.44

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Working Temperature
  • Output Power
  • Weight (g)
  • Dimensions (LxWxH) (mm)
  • Package Size
  • Maximum Output Current
  • Maximum Current
Add to cart
Control: DMX
Channels: 3
Input Voltage: DC (12-48 V)
Input Voltage Domain: DC
Working Temperature: -30°C to 55°C
Output Power: 1440 W
Weight (g): 550g
Dimensions (LxWxH) (mm): L169×W80×H39(mm)
Package Size: L182×W91×H41(mm)
Maximum Output Current: 10 A
Maximum Current: 30 A
Documents
D3.pdf
Specifications
Control DMX
Channels 3
Input Voltage DC (12-48 V)
Input Voltage Domain DC
Working Temperature -30°C to 55°C
Output Power 1440 W
Weight (g) 550g
Dimensions (LxWxH) (mm) L169×W80×H39(mm)
Package Size L182×W91×H41(mm)
Maximum Output Current 10 A
Maximum Current 30 A
Internal Reference 2277701
Barcode 6971379115951
HS Code 85044095
Downloads
D3 Click to view Download

Internal Reference: 2277701
Barcode: 6971379115951
HS Code: 85044095
