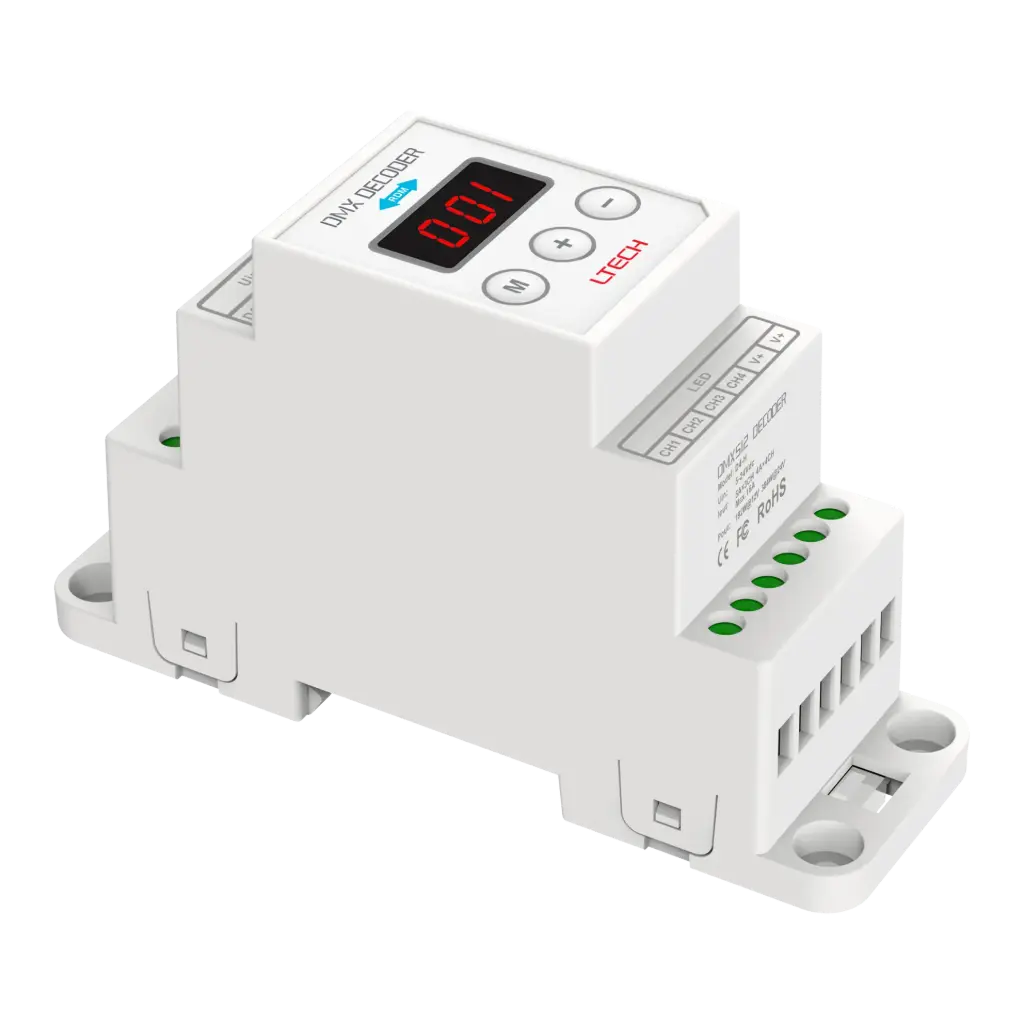

LTECH DMX LED driver CV 3x5A / 4x4A Dinrail D4-H


Constant Voltage 4 Channel DMX/RDM Decoder
This LED controller features standard DMX and RDM interfaces, with easy address setting via the onboard digital display, buttons, or a mobile app through an RDM master. It supports both DMX decoding and DMX control modes, allowing control of other decoders using preset lighting effects. Offering flexible performance options, it includes selectable PWM frequencies up to 18kHz, 8-bit or 16-bit grayscale, and linear or logarithmic dimming curves. DIM, CCT, RGB, and RGBW modes are supported, along with 10 built-in lighting effects, multiple speed levels, and fine brightness control. Additional features include adjustable screen timeout settings and built-in protection against short circuit, overheating, and overcurrent with automatic recovery.

€ 41.93 excl. VAT € 41.93

Quantity Unit Price
  • Input Voltage Domain
  • Input Voltage
  • Output Voltage
  • Channels
  • Channels
  • Maximum Output Current
  • Maximum Current
  • Output Power
  • Control
  • Dimensions (LxWxH) (mm)
  • Weight (g)
  • Working Temperature
  • Dimming Range
  • Package Size
51 in stock
Delivery to Rest of world expected in 5+ working days
Order before 15:00 on working days: shipped the same day.
Out of stock
Input Voltage Domain: DC
Input Voltage: DC (5-24 V)
Output Voltage: 5-24 V
Channels: 3 , 4
Maximum Output Current: 5A×3CH/4A×4CH
Maximum Current: 16 A
Output Power: 384 W
Control: DMX
Dimensions (LxWxH) (mm): L112xW35xH67(mm)
Weight (g): 135g
Working Temperature: -25°C to 50°C
Dimming Range: 0-100%
Package Size: L114xW37xH70(mm)
User manual
D4-H User Manual Click to view Download
Specifications
Internal Reference 2272301
Barcode 6971379113636
HS Code 85044095
General
Input Voltage Domain DC
Input Voltage DC (5-24 V)
Output Voltage 5-24 V
Channels 3 · 4
Maximum Output Current 5A×3CH/4A×4CH
Maximum Current 16 A
Output Power 384 W
Control DMX
Dimming Range 0-100%
Operating
Working Temperature -25°C to 50°C
Physical
Dimensions (LxWxH) (mm) L112xW35xH67(mm)
Weight (g) 135g
Package Size L114xW37xH70(mm)

Internal Reference: 2272301
Barcode: 6971379113636
HS Code: 85044095
