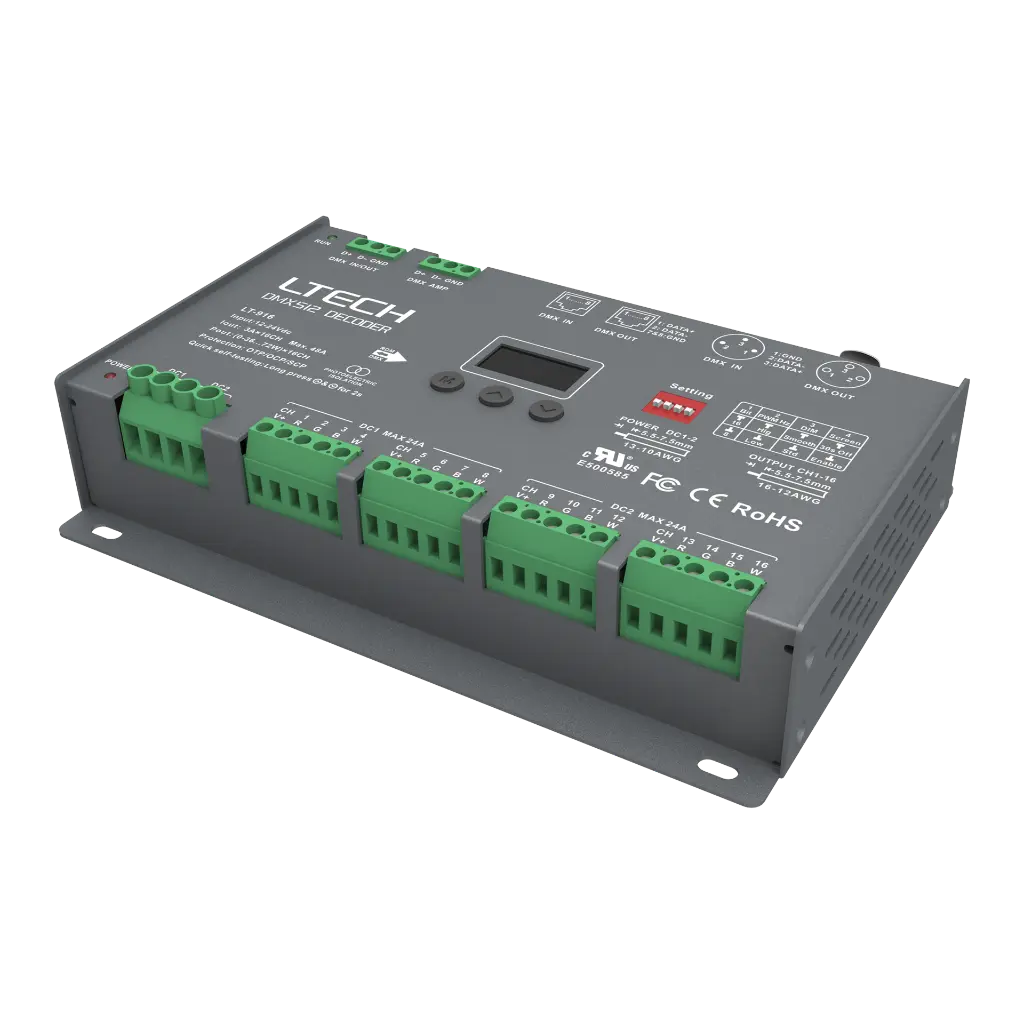

LTECH DMX/RDM LED driver CV 16x3A LT-916


High-power 16-channel DMX LED controller with up to 1152W output. Features a digital display and touch buttons for easy operation. Includes 3-pin XLR, RJ45, and green terminal DMX interfaces with signal amplification for improved transmission and reduced interference. Supports RDM remote management for parameter browsing, DMX address setting, and equipment recognition. Offers firmware upgrades, power-on state management, fast self-testing, selectable high/low PWM frequency, and 8-bit or 16-bit dimming. Built-in protection safeguards against short circuit, overcurrent, and overheating, with fault warnings.

  • Input voltage: 12~24Vdc
  • Current load: 3A × 16CH Max. 48A
  • Photoelectric Isolation: Yes
  • Working Temperature: -30°C~65°C
  • Dimensions: L180 x W122 x H39 (mm)
  • Weight: 730g
€ 146.13 excl. VAT € 146.13

Quantity Unit Price
  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Working Temperature
  • Output Voltage
  • Output Power
  • Version
  • Certificates
  • Weight (g)
  • Dimensions (LxWxH) (mm)
  • Package Size
  • Maximum Output Current
  • Maximum Current
Out of stock
Limited Stock, Contact Sales
Delivery to Rest of world expected in 5+ working days
Order before 15:00 on working days: shipped the same day.
Out of stock
Control: DMX
Channels: 16
Input Voltage: DC (12-24 V)
Input Voltage Domain: DC
Working Temperature: -30°C to 65°C
Output Voltage: 12-24 V
Output Power: 1152 W
Version: DMX/RDM
Certificates: UL
Weight (g): 730g
Dimensions (LxWxH) (mm): L180×W122×H39(mm)
Package Size: L193×W127×H41(mm)
Maximum Output Current: 3 A
Maximum Current: 48 A
User manual
LT-916 User Manual Click to view Download
Specifications
Internal Reference 2278910
Barcode 6971379111182
HS Code 85044095
General
Control DMX
Channels 16
Input Voltage DC (12-24 V)
Input Voltage Domain DC
Output Voltage 12-24 V
Output Power 1152 W
Version DMX/RDM
Maximum Output Current 3 A
Maximum Current 48 A
Operating
Working Temperature -30°C to 65°C
Certificates UL
Physical
Weight (g) 730g
Dimensions (LxWxH) (mm) L180×W122×H39(mm)
Package Size L193×W127×H41(mm)

Internal Reference: 2278910
Barcode: 6971379111182
HS Code: 85044095
