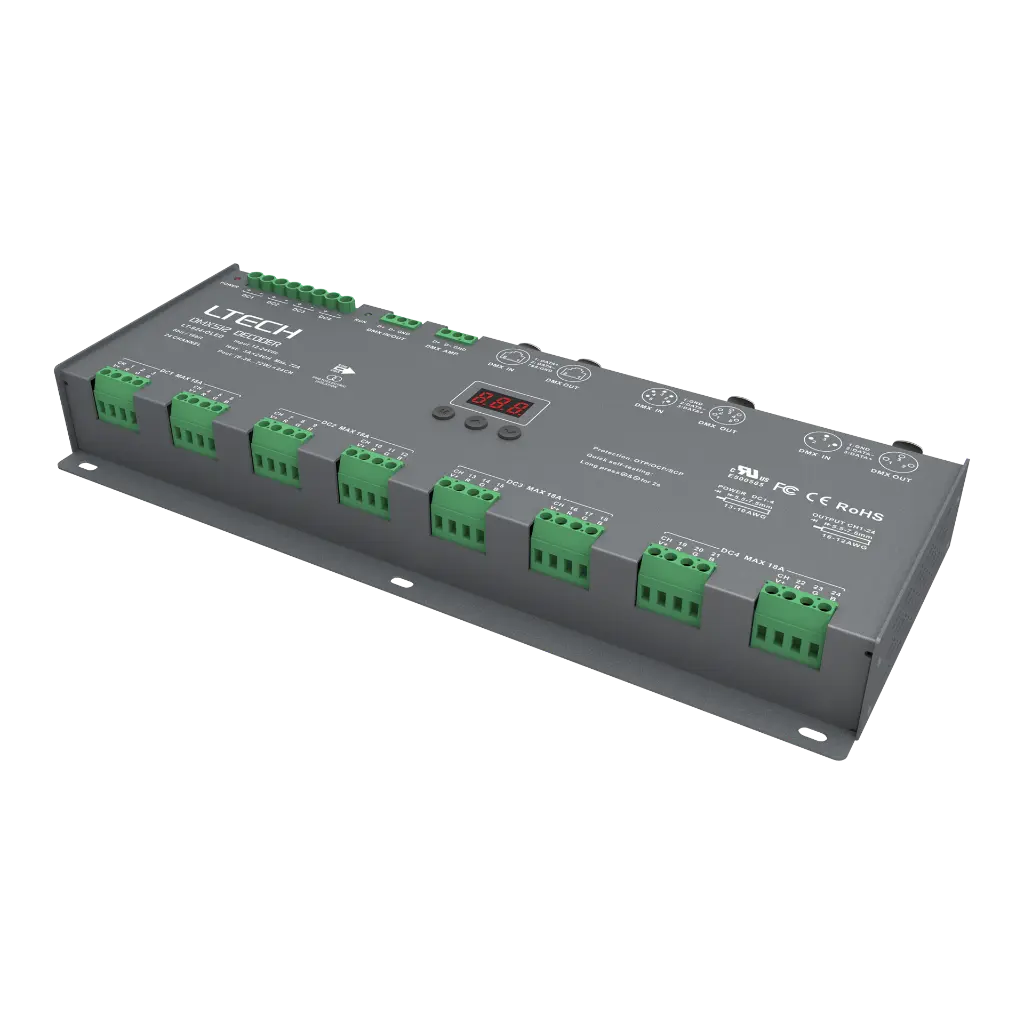

LTECH DMX/RDM LED driver CV 24x3A OLED
LT-924-OLED
High-power LED controller with 24 output channels, each supporting up to 3A and 1728W total output. Features an easy-to-use OLED screen and touch buttons. Supports DIM, CT, and RGB modes. Equipped with 3-pin XLR, 5-pin XLR, RJ45, and green terminal DMX interfaces with photoelectric isolation and signal amplification for improved transmission and anti-interference. Includes RDM protocol for remote management via master console, allowing parameter browsing, DMX address setting, and device recognition. Firmware upgradeable, with protection against short circuit, over current, and over temperature, plus fault warnings. Offers power-on state management, fast self-testing, and supports 16bit/8bit grey levels with customizable dimming curves (standard, linear, LOG, or custom 0.1-9.9).
€ 176.46
excl. VAT
€ 176.46
Partner?
Log in
and see your partner price and volume discounts right away.
Specifications
Internal Reference
2279200
Barcode
6971379111120
HS Code
85044095
General
Control
DMX
Channels
24
Input Voltage
DC (12-24 V)
Input Voltage Domain
DC
Output Voltage
12-24 V
Output Power
1728 W
Version
DMX/RDM
Maximum Output Current
3 A
Maximum Current
72 A
Operating
Working Temperature
-30°C to 65°C
Certificates
UL
Physical
Weight (g)
1120g
Dimensions (LxWxH) (mm)
L300×W122×H39(mm)
Package Size
L309×W127×H41(mm)
