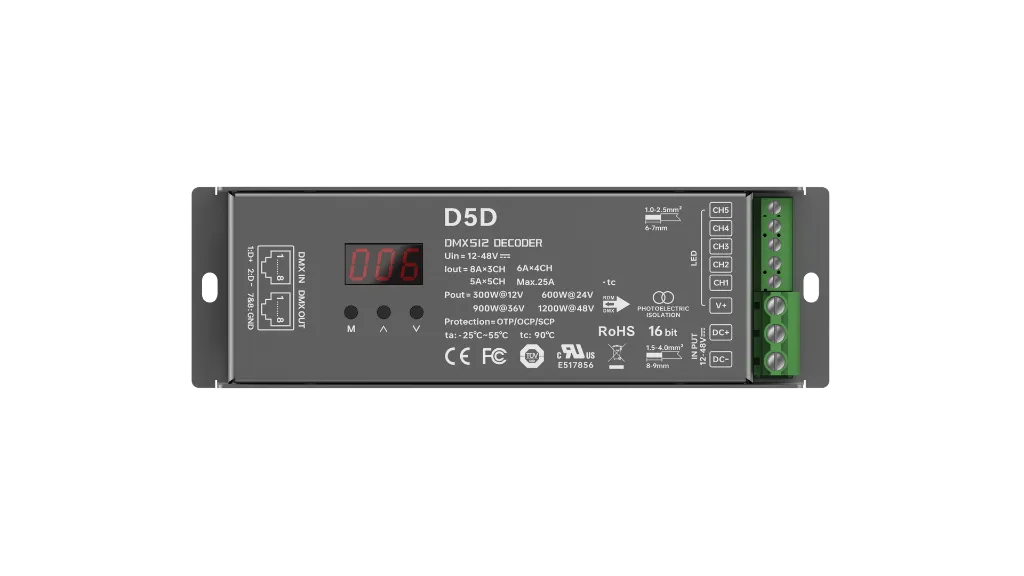

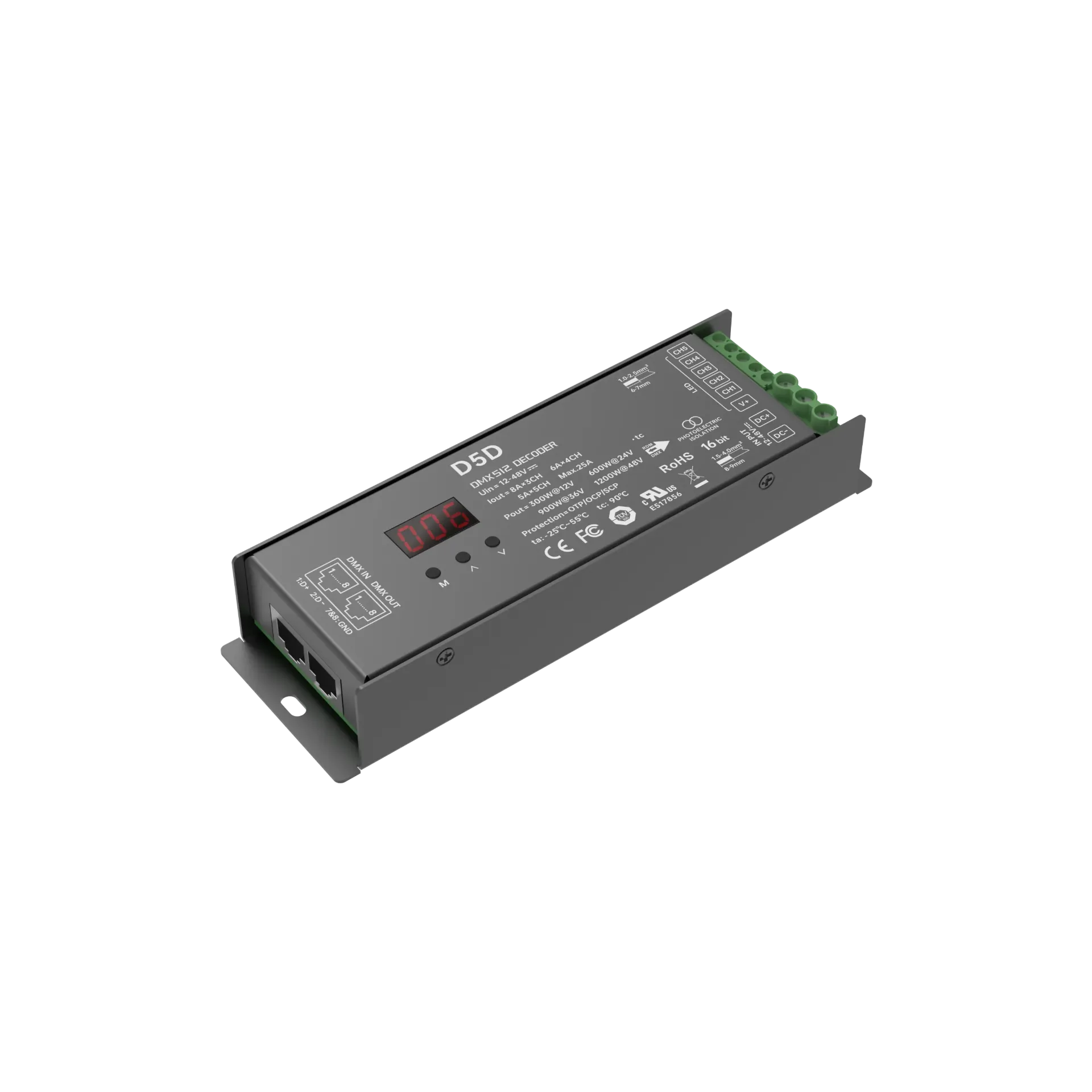

LTECH DMX LED driver CV 3x8A / 4x6A / 5x5A RJ45

Product Overview: The LTECH D5D is a versatile 5-channel DMX/RDM decoder designed for precise control of constant voltage LED lighting. It supports a wide range of lighting modes, including DIM, Color Temperature (CT), RGB, RGBW, and RGBCW. Featuring standard RJ45 DMX interfaces, the D5D is built for easy integration into professional lighting systems and allows for address setting via a digital display or remotely through RDM-compliant controllers and mobile apps.

Key Features:

• Dual Operating Modes: Easily switch between DMX decoding mode and a standalone DMX control mode that can manage other decoders with 10 preset lighting effects.

• High-Resolution Dimming: Offers optional 8-bit or 16-bit grayscale and supports both linear and logarithmic dimming curves for smooth, flicker-free transitions.

• Wide PWM Range: Provides 11 selectable PWM frequency options ranging from 300Hz to 18000Hz to meet various application requirements.

• Advanced Protection: Built-in safeguards against short-circuits, over-temperature, over-current, and reverse polarity, featuring automatic recovery for enhanced reliability.

• Flexible Output: Supports multiple output configurations, such as 8A x 3CH, 6A x 4CH, or 5A x 5CH, with a maximum total output current of 25A.
