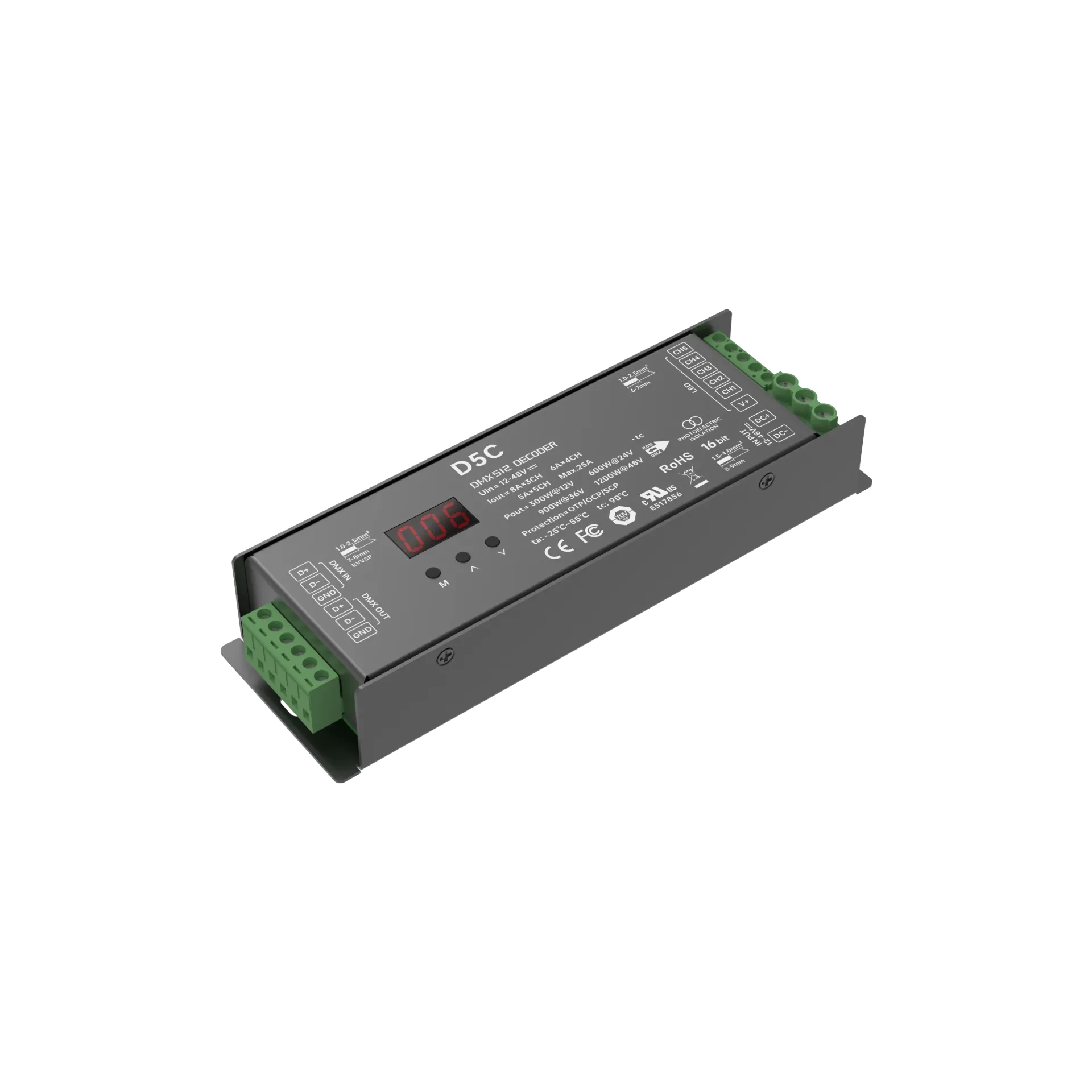

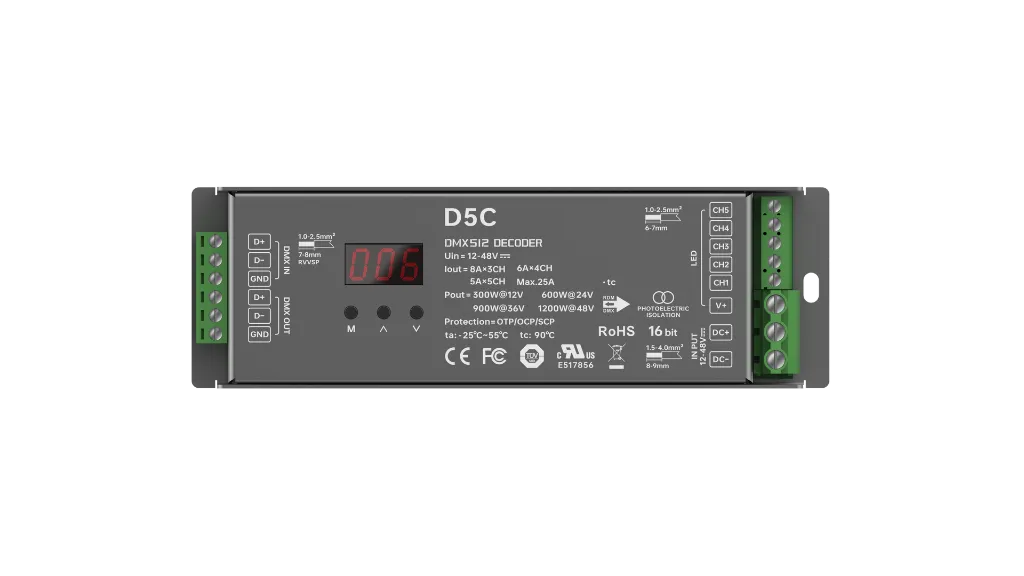

LTECH DMX LED driver CV 3x8A / 4x6A / 5x5A screw terminal

Product Overview: The LTECH D5C is a versatile 5-channel DMX/RDM decoder designed for precise control of constant voltage LED lighting. It supports a wide range of lighting modes, including DIM, Color Temperature (CT), RGB, RGBW, and RGBCW.

Key Features:

• Dual Operating Modes: Easily switch between DMX decoding mode and a standalone DMX control mode that can manage other decoders with 10 preset lighting effects.

• High-Resolution Dimming: Offers optional 8-bit or 16-bit grayscale and supports both linear and logarithmic dimming curves for smooth, flicker-free transitions.

• Wide PWM Range: Provides 11 selectable PWM frequency options ranging from 300Hz to 18000Hz to meet various application requirements.

• Advanced Protection: Built-in safeguards against short-circuits, over-temperature, over-current, and reverse polarity, featuring automatic recovery for enhanced reliability.

• Flexible Output: Supports multiple output configurations, such as 8A x 3CH, 6A x 4CH, or 5A x 5CH, with a maximum total output current of 25A.
