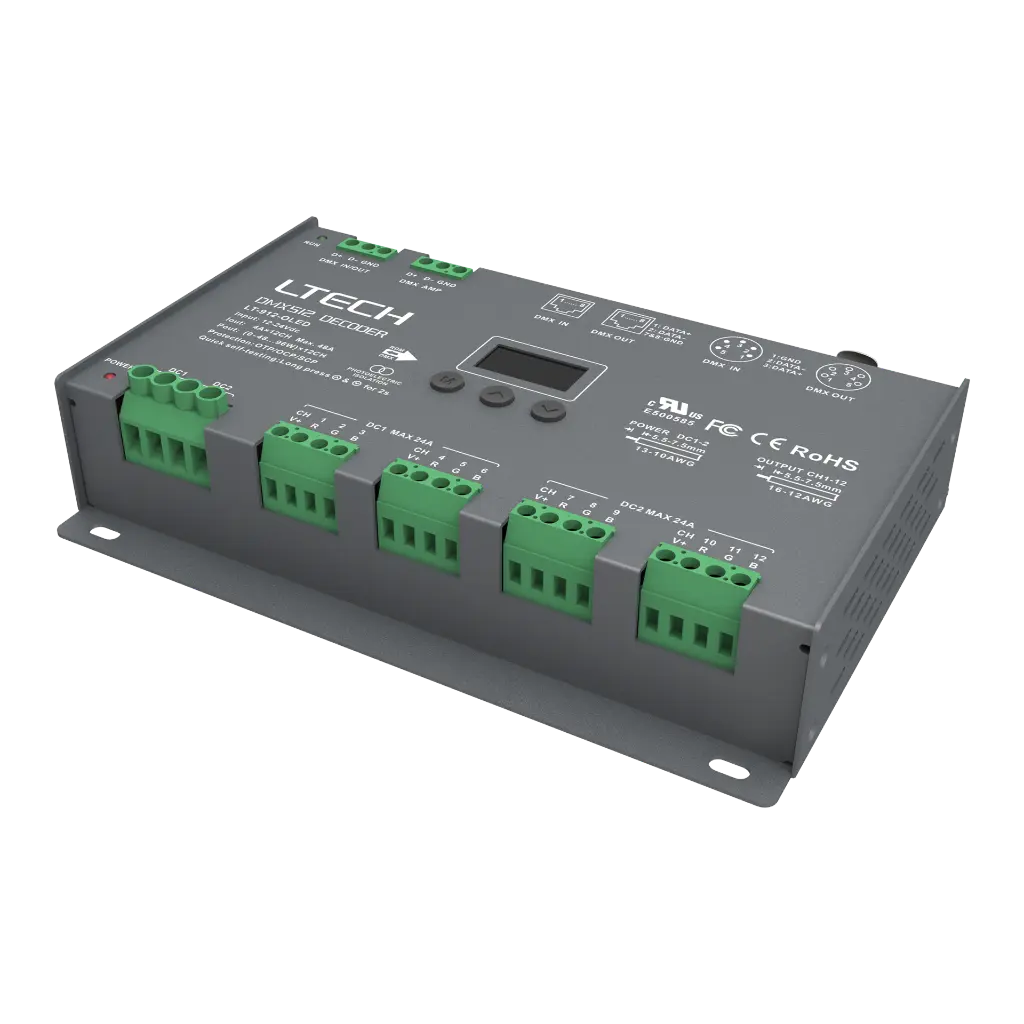

LTECH DMX/RDM LED driver CV 12x4A OLED LT-912-OLED


High-power 12-channel DMX LED driver designed for multi-channel lighting applications, delivering up to 4A per channel and 1152W total output. Features an OLED screen with touch buttons for easy setup and supports DIM, CT, and RGB modes. Equipped with 5-pin XLR, RJ45, and green terminal DMX interfaces with photoelectric isolation for stable, interference-resistant signal transmission. RDM remote management enables address setting and parameter control, while firmware upgrades, fast self-testing, power-on state management, selectable 8-bit or 16-bit dimming, multiple dimming curves, and comprehensive short-circuit, overcurrent, and overheat protection ensure stable and reliable performance.

€ 117.91 excl. VAT € 117.91

Quantity Unit Price
  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Working Temperature
  • Output Voltage
  • Output Power
  • Version
  • Certificates
  • Weight (g)
  • Dimensions (LxWxH) (mm)
  • Package Size
  • Maximum Output Current
  • Maximum Current
31 in stock
Delivery to Rest of world expected in 5+ working days
Order before 15:00 on working days: shipped the same day.
Out of stock
Control: DMX
Channels: 12
Input Voltage: DC (12-24 V)
Input Voltage Domain: DC
Working Temperature: -30°C to 65°C
Output Voltage: 12-24 V
Output Power: 1152 W
Version: DMX/RDM
Certificates: UL
Weight (g): 700g
Dimensions (LxWxH) (mm): L180×W122×H39(mm)
Package Size: L193×W127×H41(mm)
Maximum Output Current: 4 A
Maximum Current: 48 A
User manual
LT-912-OLED User Manual Click to view Download
Specifications
Internal Reference 2279100
Barcode 6971379111106
HS Code 85044095
General
Control DMX
Channels 12
Input Voltage DC (12-24 V)
Input Voltage Domain DC
Output Voltage 12-24 V
Output Power 1152 W
Version DMX/RDM
Maximum Output Current 4 A
Maximum Current 48 A
Operating
Working Temperature -30°C to 65°C
Certificates UL
Physical
Weight (g) 700g
Dimensions (LxWxH) (mm) L180×W122×H39(mm)
Package Size L193×W127×H41(mm)

Internal Reference: 2279100
Barcode: 6971379111106
HS Code: 85044095
